Coal mill specific bag filter

Product Name: LQMM Coal Grinding Special Gas Box Pulse Bag Dust Collector

Scope of application: LQMM32/64/96 series

Product Category: Environmental Protection Series

Product Remarks: LQMM Coal Grinding Special Gas Box Pulse Bag Dust Collector is the latest series of high-efficiency bag dust collectors developed by our company. It has an explosion-proof structure and is equipped with explosion-proof valves, suitable for coal powder preparation systems and the collection of flammable and explosive dust.

DESCRIPTION

The LQMM coal mill dedicated gas box pulse bag filter is the latest series of high-efficiency bag filters developed by our company. It has an explosion-proof structure and is equipped with explosion-proof valves, suitable for coal powder preparation systems and the collection of flammable and explosive dust. It adopts advanced chamber offline cleaning method to prevent the "re adsorption" phenomenon of dust after cleaning. It has the characteristics of high cleaning energy, good cleaning effect, low system resistance, long service life of filter bag, and high dust removal efficiency. The whole machine adopts PLC automatic control, and the parameters can be adjusted according to process changes.

This series of dust collectors consists of various specifications with different numbers of chambers and filter bags per chamber. There are three types of filter bags per chamber: 32, 64, 96, with a diameter of 130mm and a length of 2450mm.

【Technical parameter table】

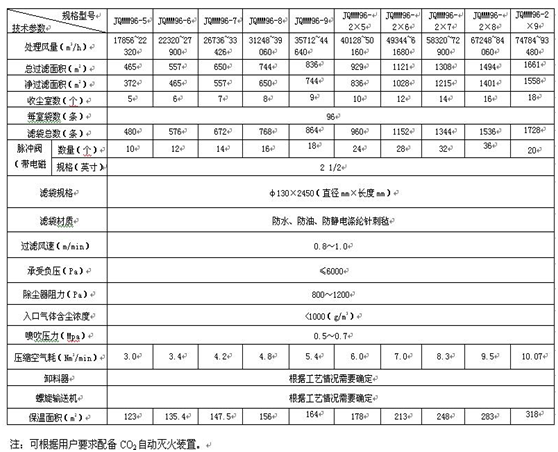

TABLE I：

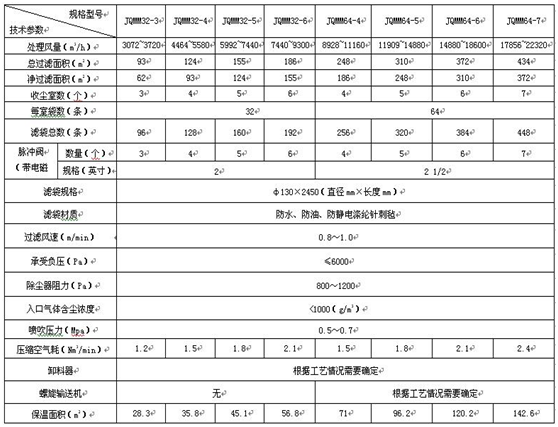

Table 2：

Coal mill specific bag filter

Coal mill specific bag filter
